Ampholytes Applications

Detection of a functionally deficient AAT protein variant by protease inhibitor (PI) typing

AAT Protein, AESlyte HR 4.2-4.9

Alpha-1-antitrypsin deficiency (AATD) is a rare hereditary condition resulting from the mutations in the SERPINA1 (serine protease inhibitor) gene and is characterized by low circulating levels of the alpha-1 antitrypsin (AAT) protein. The traditional algorithm for laboratory testing of AATD involves the analysis of AAT concentrations (nephelometry), phenotyping (isoelectric focusing, IEF), and genotyping (polymerase chain reaction, PCR).

For IEF the ampholyte HR 4.2-4.9 is required. Did you know that Isogen Life Science is the only provider for this ampholyte?

Ampholyte

If you are struggling with your assays and need customised ampholytes, we can help you with this request.

Let us work together.

Ask your questions or request a quote



iCIEF of Monoclonal Antibodies (mAbs)

Both HR and SH CEInfinite AESlytes are good for iCIEF of monoclonal antibodies (mAbs) (see below figure), fusion proteins, antibody drug conjugates (ADCs), dairy proteins, meat proteins and seed proteins.

iCIEF of Acidic Fusion Proteins

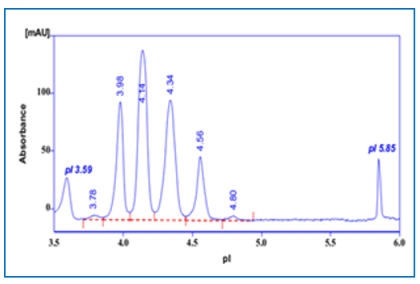

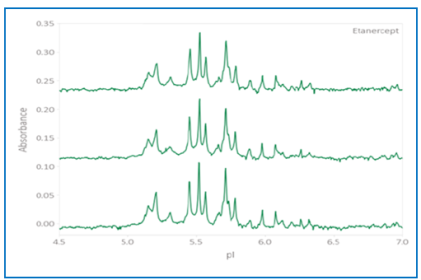

SH CEInfinite AESlytes are especially good for iCIEF of acidic fusion proteins (see below figure), dairy proteins, meat proteins and seed proteins; while HR CEInfinite AESlytes are notably good for neutral and basic fusion proteins.

Improving Separation Efficiency of some ADCs

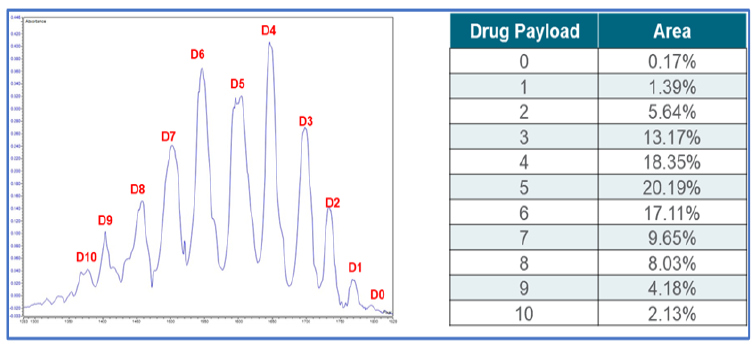

The separation efficiency of some ADCs is improved when mixing SH and HR CEInfinite AESlytes (see below figure).

Ask your questions or request a quote

Fusion Proteins and Other Complex Proteins

UH CEInfinite AESlytes are specially designed for separation of fusion proteins and other complex proteins.

Ask your questions or request a quote

Broad Range and Narrow Range pH Intervals

CEInfinite AESlytes (HR, SH and UH) are provided at broad-range and narrow range pH intervals. Broad range CEInfinite AESlytes allow for a universal iCIEF method for a range of proteins with different isoelectric points and delivers fast focusing of proteins. Narrow range CEInfinite AESlytes provide higher separation efficiency at the cost of slower focusing of proteins (see below figure). Specific iCIEF methods have to be developed when the pI of proteins is in different ranges.

CEInfinite AESlytes versus Vendor CAs

CEInfinite AESlytes have demonstrated superior focusing and low UV noise. The below figure illustrated focusing of 6 pI markers with CEInfinite AESlyte SH pH 4-8 and pH 3-7 from another vendor. Much higher baseline noise was observed from the electropherogram with CAs from the other vendor. Furthermore the pI 5.85 did not complete focusing with CAs from the other vendor under the same experimental conditions.

Learn more about

CEInfinite AESlytes for iCIEF-MS

CEInfinite AESlytes allow direct coupling of iCIEF to a mass spectrometer (MS). CEInfinite AESlytes are developed to be MS compatible (contain low salt) and have an extremely high percentage of good amphoteric components.

High protein iCIEF resolution can be achieved even with very low AESlyte concentration (0.5%). These advantages greatly minimise possible interference of MS signal by salts and CAs.

In addition, “widened” protein peaks with narrow range CAs help with mobilisation of focused protein peaks into the transfer capillary, further reducing protein remixing.

Ask your questions or request a quote

Offline iCIEF-MS

The CEInfinite Preparative instrument allows you also to perform offline iCIEF-MS by protein fractionation. The collected fractions can be further analysed with MS.

Custom Made Solution Services

We understand the complexity of a protein. To achieve higher resolution and better separation of your current (i)CIEF assays, we also offer custom made AESlytes CAs upon request. Please contact us for further support on this custom-made solution services.

Ask your questions or request a quote

Subcategory

Unit

Code
Description
