Isogen LifescienceNext-Gen Ultra-Yield Prep Platform

Modular Next Generation CEInfinite icIEF Platform

Fractionation Mode

The Next-Generation CEInfinite icIEF platform meets our customer evolving needs in the biopharmaceutical industry for larger collection amounts and higher purity of protein charge variants.

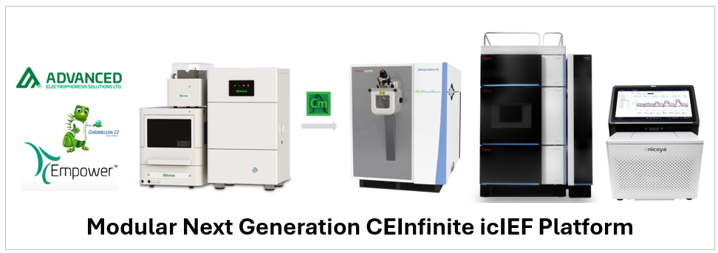

Next-Generation CEInfinite icIEF platform

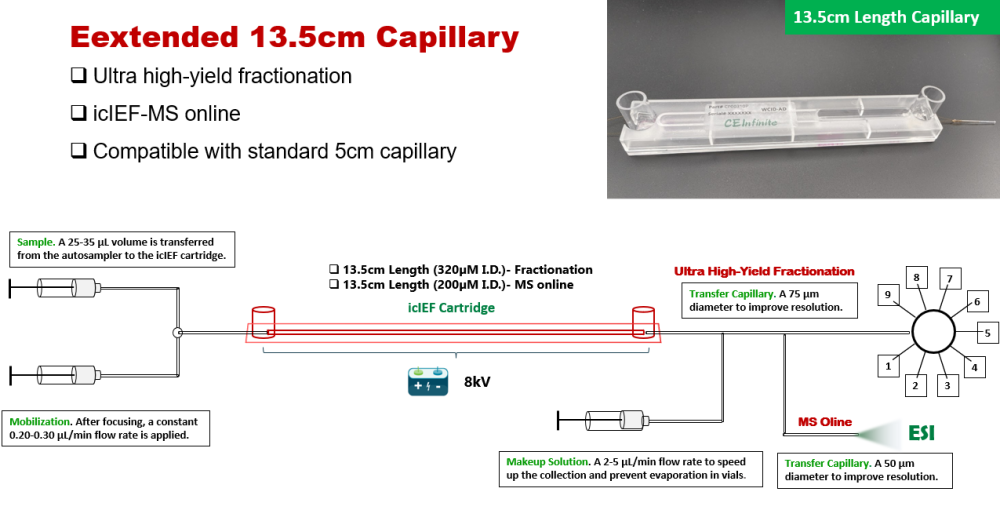

Use of an extended 13.5cm length capillary meets the growing and higher demands

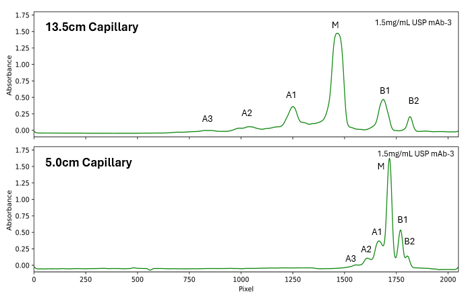

Baseline separation instead of shoulder peaks
Buffer window to achieve clean fractionation - higher purity (up to 99%)
Better resolution for online icIEF-MS assays

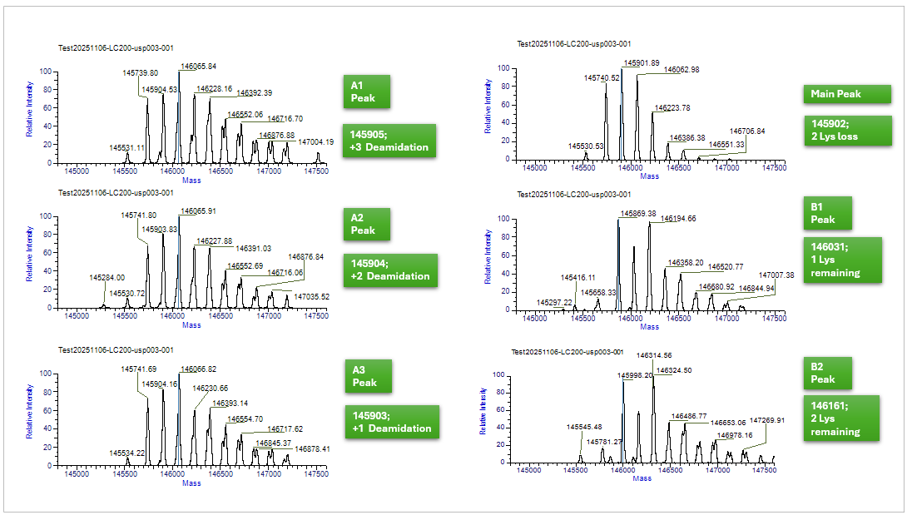

Collect fractions for downstream LC-MS/MS peptide mapping, amino acid sequencing, potency assays, and more!
An integrated icIEF-SPR workflow for functional characterisation of all product charge variants, completed within a single workweek.

Modular Next Generation CEInfinite icIEF Platform

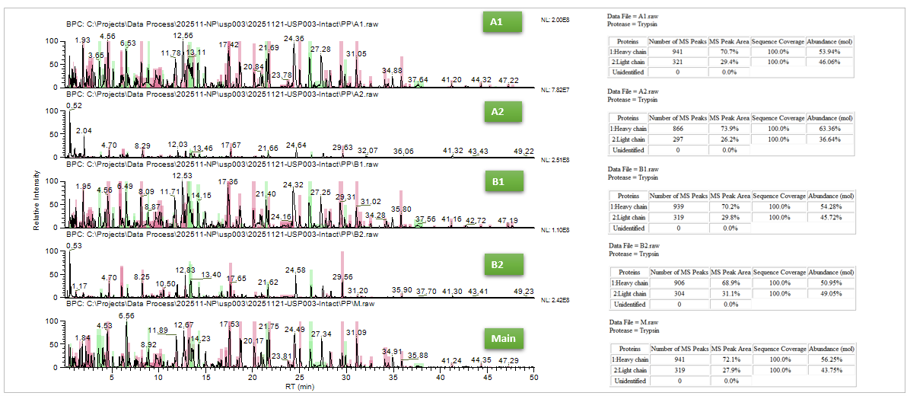

Please contact us for further information on the materials, methods, and data analysis Please contact us for further information on the materials, methods, and data analysis

Online icIEF-MS Mode

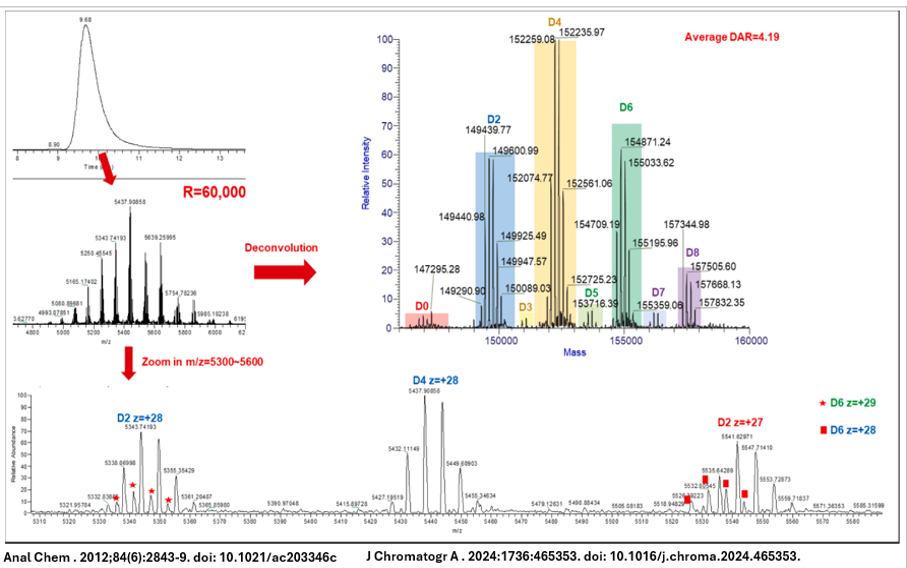

Fast protein profiling and view of protein glycosylation, other post-translational modifications (PTMs), antibody-drug ratio (DAR), (im)purity and/or mass confirmation

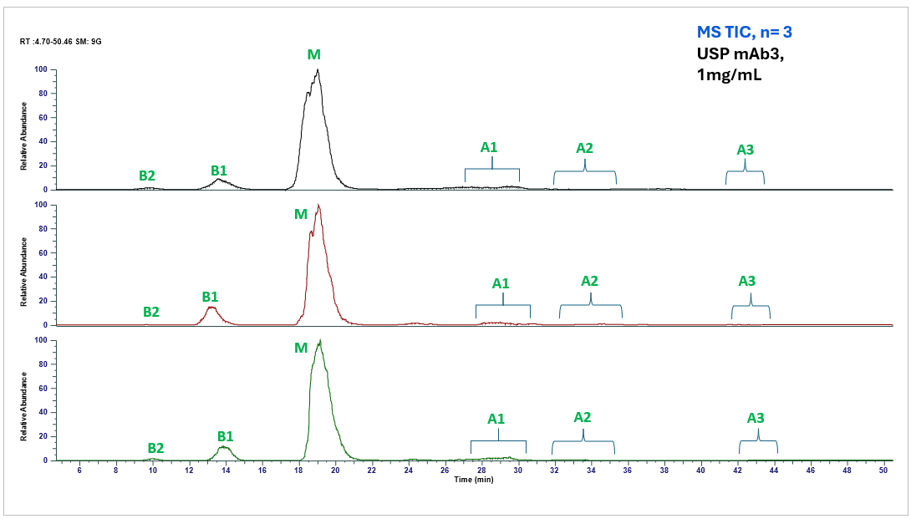

High resolution and exceptional repeatedly with online icIEF-MS,

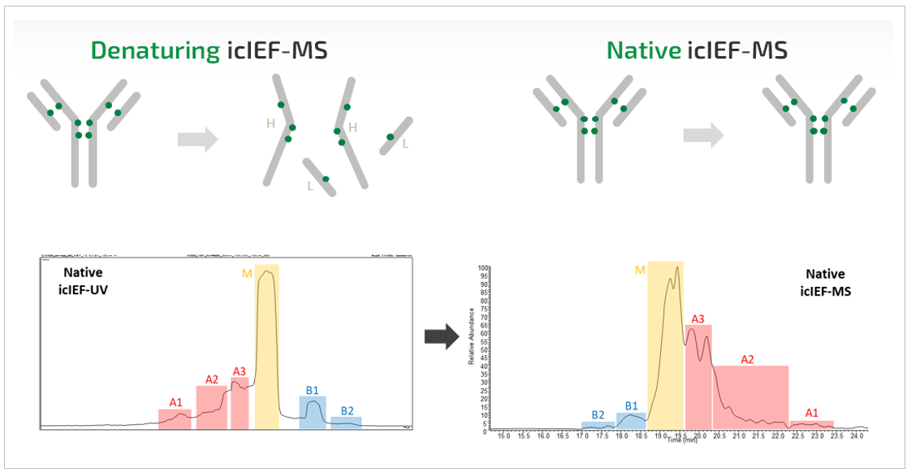

Seamlessly switch between Denatured, Native (to preserve non-covalent interactions), and Reverse Modes (resolve acidic variants)
Ensures a high-fidelity, correlation between the Analytical UV trace and the MS signal, allowing for immediate, confident variant identification.

Please contact us for further information on materials, methods, and data analysis.

Milligram-Scale Next Generation CEInfinite icIEF Fractionation

The Next Generation CEInfinite icIEF Fractionation Platform significantly accelerates comprehensive insights into charge variant modifications during biopharma development, helping to mitigate costly setbacks related to scale-up and regulatory compliance.

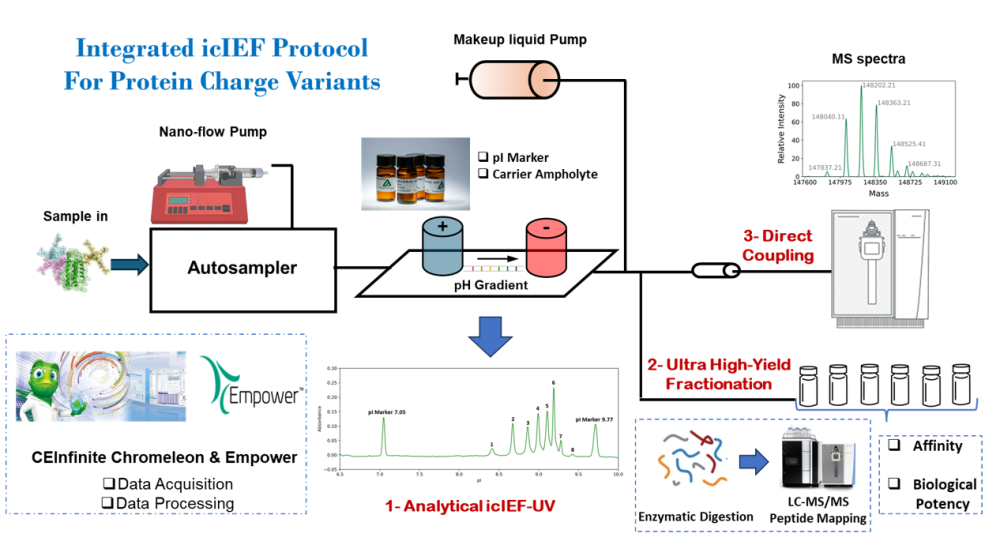

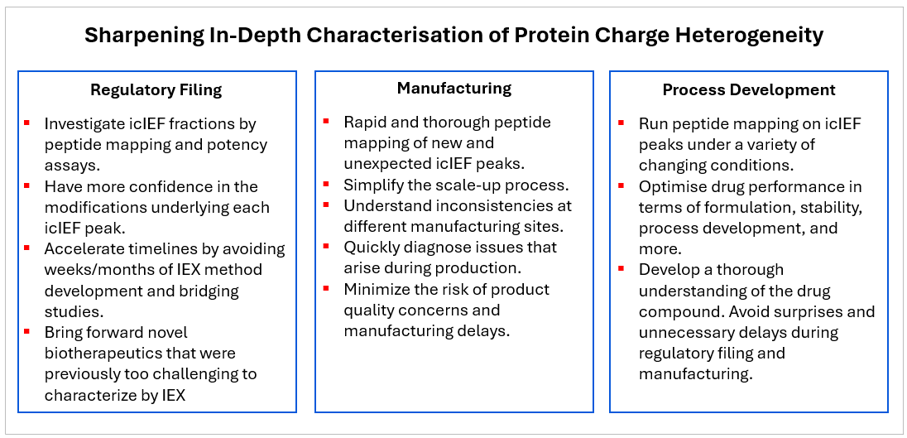

Our patented technology for efficient fractionation, that meets CQA, aligned with FDA and ICH Q6B guideline
- Collect charge variant peaks per user selected vial, no pooling of unknown wells that need to be individual checked on identification and purity of each charge
- Achieve faster and higher purity of the charged variant peaks, full coverage of small abundance charge variant peaks (2%)
- Fractions can be collected in a user selected liquid, making downstream compatibility easier
- Pressure mobilisation allow accurate fractionation with a detection of 0.1 pI difference, AES has experience with both mobilisations and have opted for the best solution with the highest reproducibility and accuracy. This allows also automated unattended collection of several runs (20-30 runs ~ 5-250 µg/per day) consecutively.

$ Our patented technology for efficient fractionation, that meets CQA, aligned with FDA and ICH Q6B guideline$
